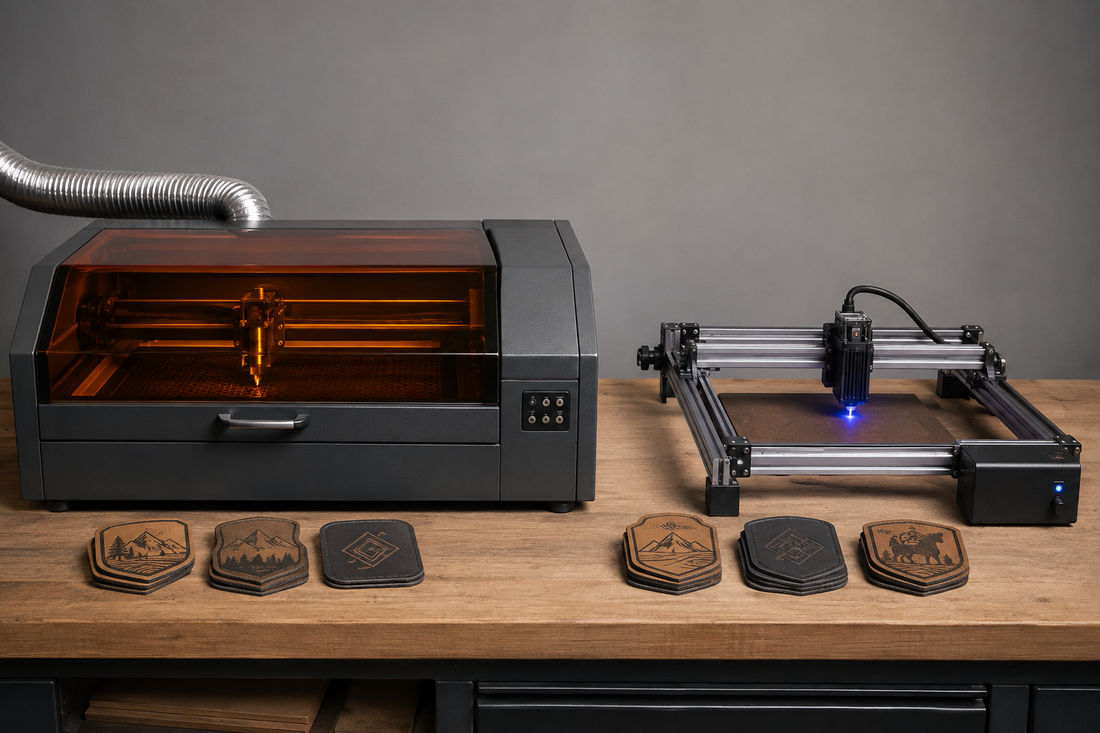

CO₂ vs Diode Laser for Leatherette Patches: Full Guide

If you're building a leatherette patch business - or adding patches to an existing apparel operation - the laser question comes up fast: CO₂ or diode?

Here's the short answer up front: a CO₂ laser is the better choice for leatherette patches in almost every production scenario. Its 10.6-micron infrared wavelength is absorbed beautifully by leatherette's synthetic layers, producing deep, high-contrast engraving and clean cut edges at 2–5× the speed of a comparable diode machine. A diode laser makes sense only if you're a hobbyist, testing the waters on a tight budget, or working exclusively with lighter-colored leatherette in small batches.

That's the verdict. Now let's unpack why - because if you're about to spend anywhere from $400 to $10,000 on a machine, you deserve more than a one-line answer.

First, a Quick Refresher: What Is Leatherette?

Leatherette (also called faux, vegan, or PU leather) is a layered synthetic material - typically a colored top layer over a contrasting core, often with a heat-activated adhesive backing. When a laser vaporizes the top layer, it reveals the contrast layer underneath, which is what creates that crisp two-tone logo look you see on trucker hats everywhere.

This layered construction is exactly why laser choice matters so much: the machine's ability to remove the top layer cleanly and consistently - without scorching, melting, or under-etching - determines whether your patch looks retail-ready or homemade. Once engraved, patches are typically heat-pressed onto blank hats and caps built for custom decoration, so edge quality and contrast are on full display at eye level.

How Each Laser Works on Leatherette

CO₂ Lasers (10.6 µm Infrared)
CO₂ lasers generate their beam inside a gas-filled tube (glass tube or RF-excited) and typically run at 40–100W+. The 10.6-micron wavelength is strongly absorbed by organic and synthetic materials - leather, leatherette, wood, acrylic - which means:

Deep, dark, high-contrast marks on every leatherette color, including black
Clean vector cutting through patch material in a single fast pass
High throughput - a 60W CO₂ machine can engrave a standard 3"×2" patch in well under a minute

Diode Lasers (~450 nm Blue Light)

Diode lasers use compact semiconductor modules, usually 5–40W optical output. The blue 450 nm wavelength is absorbed well by dark pigments but reflects off lighter and certain colored surfaces. On leatherette that translates to:

• Good results on light/tan leatherette, weaker or inconsistent contrast on some colors
• Slower engraving and cutting - often requiring multiple passes to cut through
• Much lower entry price - capable machines start around $300–$700

Laser etching is just one of several patch and emblem decoration methods; if you want the broader landscape, this overview of applique, laser etching, engraving, and embossing processes explains where each technique fits.

CO₂ vs Diode for Leatherette Patches: Head-to-Head Comparison

Why CO₂ Usually Wins for Patch Work

• Contrast is your product. A patch is a logo-delivery vehicle. CO₂'s wavelength vaporizes the top layer uniformly regardless of pigment, so a black patch engraves as cleanly as a tan one. Diode users often find themselves limited to a narrow color palette.

• Throughput drives profit. In production terms, a 60W CO₂ machine can finish roughly 100 patches in the time a 20W diode completes 30–40. If you're selling patches or patch hats, that gap is your margin.

• Cut-and-engrave in one job. CO₂ machines cut custom patch shapes (hexagons, shields, contour cuts) cleanly in the same run. Diodes frequently leave melted or charred edges on synthetic material.
• Consistency across a batch. Order #47 needs to look identical to order #1. Higher power headroom means CO₂ machines hold depth and darkness steady across long runs and slight material thickness variations.

When a Diode Laser Is Genuinely the Right Call

To be fair to the diode camp - it's not the wrong tool for everyone:

• You're testing a patch side-hustle and can't justify $3,000+ yet
• You work primarily with light tan or brown leatherette, where diode contrast is solid
• You need something portable and desktop-sized for markets or pop-ups
• Your volume is a handful of patches per week, not per hour

Many successful patch makers start on a diode, validate demand, then upgrade to CO₂ once orders outgrow the machine.

Buyer's & Researcher's Deep-Dive: What to Evaluate Before You Spend

If you're in research mode, these are the criteria that actually separate a good purchase from a regretted one:

1. Total cost of ownership, not sticker price. A $500 diode that takes 4 minutes per patch costs more per unit in labor than a $3,500 CO₂ doing the same patch in 45 seconds - once you're past roughly 20–30 patches a week. Model your break-even honestly.
2. Material compatibility across your roadmap. Planning to expand into acrylic keychains, wood signs, or engraved tumbler gift boxes later? CO₂ handles acrylic and clear materials that blue diodes physically cannot mark. Buy for where you're going, not just where you are.
3. Workspace realities. CO₂ machines need a fume extraction path (engraving leatherette produces fumes you don't want to breathe) and, for glass-tube models, water cooling. Diodes still need ventilation but tolerate smaller spaces.
4. Software, artwork, and jigging. Batch patch production lives and dies by jigs - templates that hold multiple patches in fixed positions so every engraving lands identically. Check that the machine's software supports array duplication and saved presets. Clean vector artwork matters just as much; starting from ready-made design templates is an easy way to keep logos crisp at patch scale instead of fighting pixelated raster files.
5. The rest of your workflow. The laser is only half the patch business; the other half is application. You'll want a hat press and dialed-in press settings - the same discipline covered in these heat transfer application instructions applies to adhesive-backed patches: right temperature, right pressure, right dwell time.
6. Whether you need a laser at all. Here's the question most "CO₂ vs diode" articles never ask: if your real goal is decorated hats and apparel - not laser ownership - buying ready-to-press patches and transfers may beat both options. No machine cost, no learning curve, no fume extraction. Printphase's custom patches, ready to heat press give you the engraved-leatherette look without the capital outlay, which is often the smartest first move for apparel decorators validating a new product line. You can compare that route against pressing different types of heat transfers to build out a full headwear and apparel lineup from one workflow.

Do's and Don'ts for Laser Engraving Leatherette Patches

Do's

• Do test on scrap first. Every leatherette color and brand behaves slightly differently; dial in power/speed on an offcut before touching production stock.
• Do remove any protective film and wipe the surface with a lint-free cloth before engraving.
• Do use low air assist when engraving (preserves dark contrast) and high air assist when cutting (keeps edges clean).
• Do build a jig for repeat patch sizes so alignment is identical every run.
• Do ventilate properly. Vaporized PU releases fumes - use an exhaust fan or fume extractor, always.
• Do clean your lens regularly. Leatherette residue builds up fast and degrades engraving quality.
• Do keep a settings log per material color and supplier - future you will be grateful.

Don'ts

• Don't engrave PVC-based faux leather. It releases chlorine gas that is hazardous and corrodes your machine. Confirm your material is PU-based and laser-safe.
• Don't max out power hoping for darker marks - you'll melt the top layer and blur fine detail. Contrast comes from correct settings, not brute force.
• Don't skip the border test on dark colors with a diode - some engrave silver/gold rather than black, which may not match the customer's expectation.
• Don't stack multiple passes on adhesive-backed patches unless needed; excess heat can activate or degrade the adhesive prematurely.
• Don't ignore consistency at scale. If patch #80 looks lighter than patch #1, check lens cleanliness and material batch before blaming settings.


The Verdict

Choose CO₂ if patches are a business (or about to become one): every leatherette color, faster runs, cleaner cuts, professional consistency. Choose diode if you're a hobbyist or validating demand on a small budget with light-colored material. And choose neither if what you actually want is finished patch hats - outsource the engraving and put your capital into inventory and marketing instead.

Frequently Asked Questions

1. Can a diode laser engrave black leatherette?
Sometimes, but results vary. Many black leatherettes engrave silver/grey under a diode rather than producing strong contrast, and some colors respond poorly to 450 nm light. CO₂ lasers produce reliable contrast on black and every other color, which is why they're the production standard.

2. What wattage CO₂ laser do I need for leatherette patches?
40–60W is the sweet spot for most patch businesses - more than enough to engrave crisply and cut patch shapes in a single pass. Go higher (80–100W) only if you're also cutting thick genuine leather or running very high volume.

3. Is leatherette safe to laser engrave?
Yes, if it's PU (polyurethane) based and sold as laserable - always with proper ventilation or fume extraction. Never laser PVC/vinyl-based faux leather; it releases toxic, corrosive chlorine gas.

4. How fast can you engrave a leatherette hat patch?
On a 60W CO₂ laser, a standard 3"×2" patch typically engraves in 30–60 seconds. A 20W diode may take 2–5 minutes for the same design, which is why CO₂ dominates bulk orders.

5. Do I need a laser to sell leatherette patch hats?
No. Many decorators order pre-made or custom-engraved patches and simply heat press them onto hats. It's the lowest-risk way to launch, since your only equipment need is a hat press.
