Raster vs Vector Engraving for Hat Patches: Which One Should You Use?

Here's the short answer: raster engraving is what you'll use for most hat patch work, while vector engraving handles outlines, scoring, and cutting. Raster engraving fills in solid areas - logos, text, shaded artwork - by sweeping the laser back and forth line by line, burning the design into the patch surface. Vector engraving traces thin lines and paths in a single continuous stroke, which makes it faster for outlines and the only option for cutting a patch to shape.

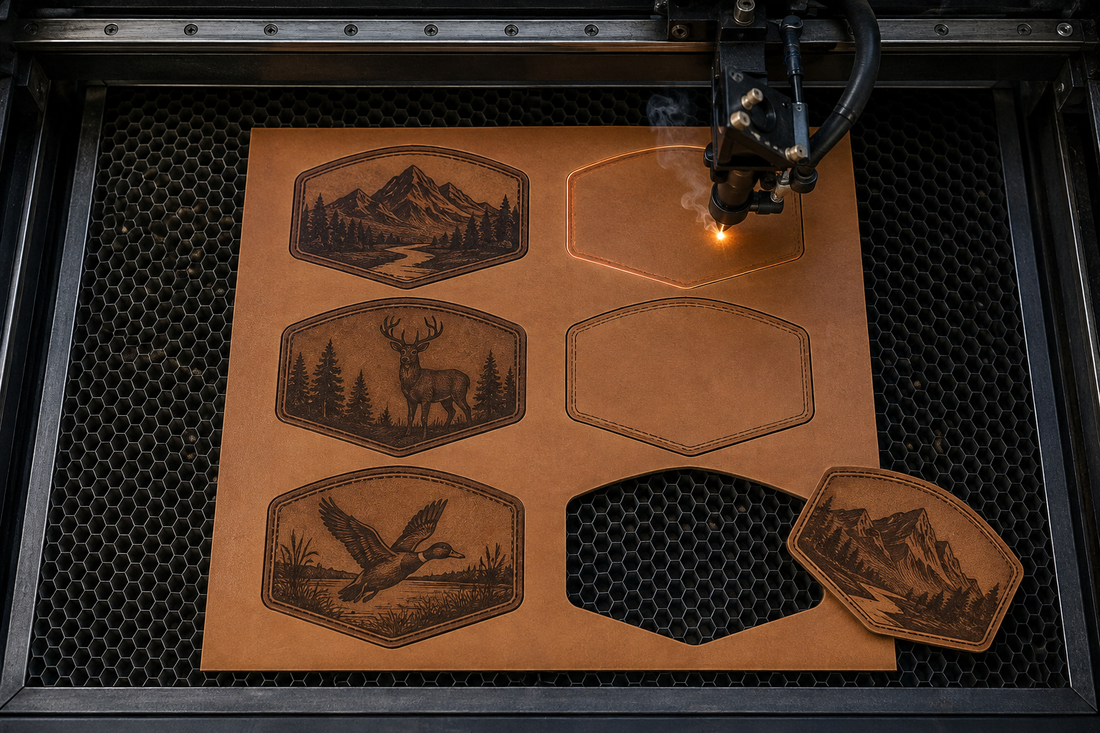

Most professional hat patches actually use both in the same job: raster for the logo fill, vector for a border score or the final cut-out. Once you understand which mode does what, your patches go from "homemade" to retail-quality - and your production time drops noticeably.

This guide breaks down exactly how each engraving mode works, when to choose one over the other, and how to set up your files so your leatherette patches come out crisp, dark, and consistent every single time.

What Is Raster Engraving?

Raster engraving works the way an inkjet printer prints: the laser head sweeps horizontally across the patch, row by row, pulsing on and off to burn tiny dots into the surface. Thousands of those dots together form your image.

Because it processes designs pixel by pixel, raster engraving is driven by raster (bitmap) image files - JPG, PNG, BMP, and similar formats. The laser reads the darkness of each pixel and adjusts accordingly, which is what allows raster engraving to reproduce:

• Solid, filled logos and lettering
• Shading, gradients, and photographic detail
• Textured or distressed design effects
• Large filled areas across the patch face

On leatherette, raster engraving is what produces that rich, dark, debossed look people associate with premium hat patches. The laser removes the top layer of material and darkens what's underneath, creating both visual contrast and a subtle tactile depth.
The trade-off is speed. Because the laser must physically scan every line of the design area - even the blank parts of each row - raster jobs take longer than vector jobs of the same size. A detailed 3" x 2" patch design might take a few minutes to raster, while vectoring its outline takes seconds.

What Is Vector Engraving?

Vector engraving (often called "scoring") is a completely different motion. Instead of sweeping row by row, the laser follows the actual paths in your design file - lines and curves defined mathematically - the way a pen traces a drawing. Both axes of the machine move together along the path in one continuous motion.

Vector engraving requires vector file formats - SVG, AI, EPS, DXF, or PDF - where your design exists as paths rather than pixels. In your laser software, these paths are typically set as hairline-width strokes so the machine recognizes them as lines to trace rather than areas to fill.

For hat patches, vector engraving is the right tool for:

• Thin outline-style designs and fine linework
• Border accents around the patch edge
• Scoring fold or alignment marks
• Cutting the patch out of the leatherette sheet (same process, higher power)

That last point is important: vector is the only mode that cuts. Raster can never cut a patch to shape, because it doesn't follow a closed path - it just marks a surface. Every custom-shaped patch you've ever seen was vector cut, regardless of how the artwork itself was engraved.

Raster vs Vector: Side-by-Side Comparison

Factor	Raster Engraving	Vector Engraving
How it works	Sweeps line by line, dot by dot (like a printer)	Traces paths in continuous strokes (like a pen)
File types	JPG, PNG, BMP, TIFF	SVG, AI, EPS, DXF, PDF
Best for	Filled logos, text, shading, photo-style detail	Outlines, fine lines, scoring, cutting
Speed	Slower (covers the full design area)	Faster (only travels the line paths)
Scalability	Loses quality when enlarged (pixels)	Infinitely scalable with no quality loss
Can it cut?	No - engraving only	Yes - at higher power settings
Look on leatherette	Dark, filled, debossed contrast	Crisp, thin, precise score lines
Typical patch use	The logo/artwork itself	Borders, accents, and the final cut-out

Which is "better" for hat patches? Neither wins outright - they solve different problems. But if we're talking about the artwork on a typical hat patch (a filled logo with text), raster engraving is the better option about 90% of the time. Filled designs are what raster exists for, and the dark burn contrast it creates on leatherette is exactly the retail look buyers expect. Vector then finishes the job by cutting the patch cleanly to shape. That's why the professional workflow is almost always raster-engrave first, vector-cut second, in a single job with layered settings.

Why This Matters More on Leatherette Than Other Materials

Hat patches are small - usually between 2" x 1.5" and 3.5" x 2.5". At that scale, every engraving decision is magnified:

Detail density: A design that looks clean at 8 inches wide can turn to mush at 2.5 inches. Raster engraving needs adequate DPI (300–600 works well for leatherette) and simplified artwork to stay legible at patch size.

Contrast is the whole product: Unlike a wood sign viewed from across a room, a hat patch is seen from two feet away. The crisp dark-on-tan burn that quality leatherette produces under raster engraving is what makes the design pop. Getting your artwork mode right is half of that equation; the material is the other half.

Edge quality sells the patch: A vector cut on good leatherette produces a sealed, clean edge with no fraying - one of the big reasons faux leather outperforms genuine leather for patch production. A sloppy cut path ruins an otherwise perfect engrave.

This is also where material quality separates hobby results from sellable products. Printphase leatherette is formulated specifically for laser work - consistent burn contrast, clean vector-cut edges, and a heat-seal backing that presses onto caps in about 30 seconds. If you'd rather skip sheet cutting entirely, pre-cut options like the 3" x 2" leatherette heat-applied patch let you raster your design onto a ready-made blank and press it straight onto a hat.

Setting Up Your Files: The Practical Workflow

Step 1: Decide what's raster and what's vector

Look at your design and split it mentally: filled areas and text are raster; the patch outline and any thin accent lines are vector. If your logo only exists as a PNG or JPG, it can still raster-engrave beautifully - but your cut line must be a true vector path.
If you're unclear on the underlying file-type distinction, this explainer on the difference between vector and bitmap images covers it in plain terms.

Step 2: Convert artwork where needed
Got a low-resolution logo that pixelates at patch size? Converting it to vector paths lets you scale it cleanly and gives you the option of engraving it in either mode. Here's a walkthrough on how to convert a bitmap to a vector using Adobe Illustrator - the auto-trace function handles most logos in under a minute.

Step 3: Layer your job
In LightBurn, JobControl, or your laser's software, assign the raster artwork and the vector cut line to separate layers (usually by color). Set the raster layer to your engrave settings, and the vector layer to either score (low power) or cut (high power). The machine runs the engrave first, then the cut - one job, no re-registration.

Step 4: Test on scrap
Leatherette engraves fast and dark, so small setting changes show big results. Run a 1-inch test square before committing to a batch. If you're comparing materials or just getting started, a free sample pack is the zero-risk way to dial in settings on the actual material you'll be producing with.

Do's and Don'ts of Engraving Hat Patches

Do's

• Do use raster mode for any filled logo, text block, or shaded artwork - it's what the mode is built for
• Do keep your cut line as a hairline-width vector path so the software reads it as a cut, not an engrave
• Do simplify artwork for patch scale - bold shapes and clean text beat fine detail at 2–3 inches wide
• Do run raster before vector cut in the same job so the patch doesn't shift between operations
• Do test settings on scrap leatherette first - 60 seconds of testing saves a batch of ruined patches
• Do mirror nothing - unlike heat transfer vinyl, engraving is right-reading; what you see is what burns

Don'ts

• Don't try to cut a patch with raster mode - it physically can't follow a closed path
• Don't enlarge small raster logos and expect clean results - pixelation engraves as fuzzy edges; vectorize instead
• Don't vector-engrave large filled areas - outlining a fill with hundreds of offset passes is painfully slow and uneven; that's raster's job
• Don't max out power on leatherette - over-burning melts detail and can cut through the top layer unevenly
• Don't ignore DPI - below ~300 DPI, raster engraving on small patches looks visibly dotty
• Don't skip the border test - vector score lines too close to the cut edge can weaken the patch rim

Buyer's & Researcher's Analysis: What This Decision Actually Costs You

If you're researching this topic, you're probably in one of three situations. Here's the honest breakdown for each:

The startup patch maker (first 100 patches): Your real constraint isn't raster vs vector knowledge - it's file prep time and material waste while you learn. Expect your first sessions to be 70% testing. Choosing laser-optimized leatherette shortens that curve dramatically because the burn behavior is consistent sheet to sheet; cheap mixed-source faux leather forces you to re-dial settings constantly. Budget-wise, pre-cut patch blanks cost slightly more per unit but eliminate cut-line file work entirely, which is usually the right trade for your first orders.

The growing shop (patches as a product line): Speed is now your cost driver. Raster time scales with design area, so batch layouts matter: gang multiple patches per sheet, run all raster passes, then all vector cuts. A hat press with a curved platen - like the Hotronix 360 IQ hat heat press - turns finished patches into finished hats in about 30 seconds each, which is where the margin actually lives. Browse the full range of hat heat presses if you're comparing curved-platen options at different price points.

The decorator adding patches to an existing lineup: You already own a press and sell caps; patches are an add-on SKU. Your analysis should focus on the full product cost: blank cap + patch + engrave time + press time. Stocking quality blank headwear alongside patch material lets you sell the finished hat (higher margin) instead of just the patch. And if laser engraving is new to your shop entirely, this overview of laser etching and engraving as a decoration process positions it against embroidery and applique so you can price it correctly.

Across all three, one pattern holds: the raster/vector decision is free to get right and expensive to get wrong. Wrong mode choice wastes machine hours and material; right mode choice is simply a file-setup habit.

Conclusion

Raster and vector engraving aren't competitors - they're two halves of one workflow. Raster gives your hat patch its filled, high-contrast artwork; vector gives it clean accent lines and the final cut. Learn to layer them in a single job and you're producing patches at retail quality with minimal wasted time.

The other half of the equation is material. The best file setup in the world can't fix leatherette that burns inconsistently or frays at the cut edge. Explore the complete patches collection to see what's available, and start with faux leather sheets or pre-cut blanks that are engineered for exactly this work. Order a sample, run your first raster-plus-vector job, and see the difference on the very first patch.

Frequently Asked Questons

1. Can I use both raster and vector engraving on the same hat patch?
Yes - and you almost always should. The standard professional workflow rasters the filled artwork first, then vector-cuts the patch outline in the same job. Assign each element to a separate layer (color) in your laser software with its own power and speed settings, and the machine runs both operations without moving the material.

2. Which is faster for hat patches, raster or vector engraving?
Vector is faster per operation because the laser only travels along line paths, while raster must sweep the entire design area row by row. However, for a typical filled logo, raster is the only mode that produces the correct result - vector-outlining a filled design is actually slower and looks worse. Use each mode for what it's built for and total job time stays low.

3. What file format do I need for laser engraving hat patches?
For raster engraving, high-resolution JPG or PNG files (300–600 DPI at final patch size) work well. For vector engraving and cutting, you need a true vector file - SVG, AI, EPS, DXF, or PDF - with the cut line set to hairline stroke width. Many patch jobs use both: a raster image for the artwork placed inside a vector cut path.

4. Why does my engraved patch look blurry or dotty?
That's almost always a raster resolution problem. If your source image is low-resolution or was enlarged beyond its original size, the pixels spread out and engrave as visible dots or fuzzy edges. Fix it by sourcing higher-resolution artwork, engraving at 300+ DPI, or converting the design to vector paths so it scales cleanly to any patch size.

5. Can raster engraving cut out my patch shape?
No. Raster engraving only marks surfaces - it sweeps back and forth and cannot follow a closed cutting path. To cut a patch from a leatherette sheet, you need a vector path run at cutting power. If you want to avoid cutting altogether, pre-cut leatherette patch blanks let you raster your design onto a finished shape and press it straight onto the hat.
